My RWD turbo "dodge" 1977 Toyota Celica Liftback GT 2.4L swap
Garrett Booster

Join Date: Oct 2008
Location: Franklin, TN

My Ride: 77 Celica Liftback
Engine: 2.4L Dodge 420a
Induct: Turbo
1/4: 0.000

Posts: 236
Feedback: (0)
wicked93gs is keeping the peace
well, I decided to put this thread in the place best suited to it overall...the car is a 77 toyota celica liftback GT...picked it up non-running for a few hundred dollars and decided after much debate with myself about engine choices on a 2.4L of a sort





a few pictures of the car itself...heh, such a 69 mustang ripoff, but I'm not complaining since it weighs in stock at 2550 lbs

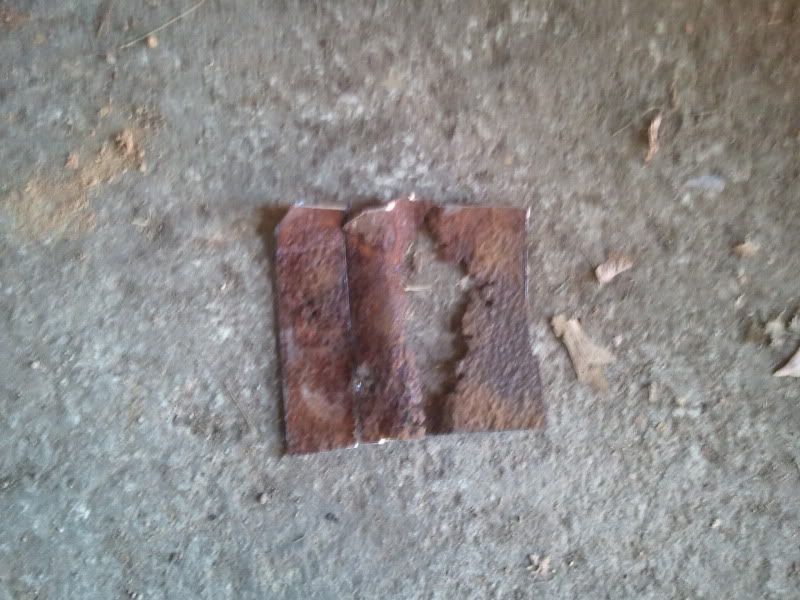

a few pictures of some minor rot I have to repair...not bad at all...its an Oregon car...also have some surface rust, etc, but a solid car overall

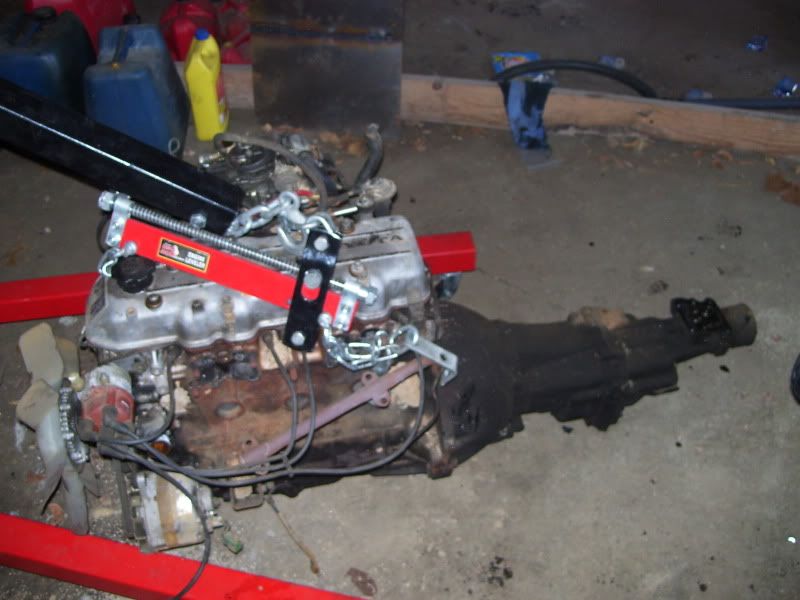

out with the old engine and tranny....the 20r isnt a bad engine...but its locked up and really doesnt have the potential of a more modern DOHC 16v engine


the block I will be using...pulled it from a 99 caravan for a cost of $65...of course it will be rebuilt with SRT parts before I am done...block looks to be in good shape

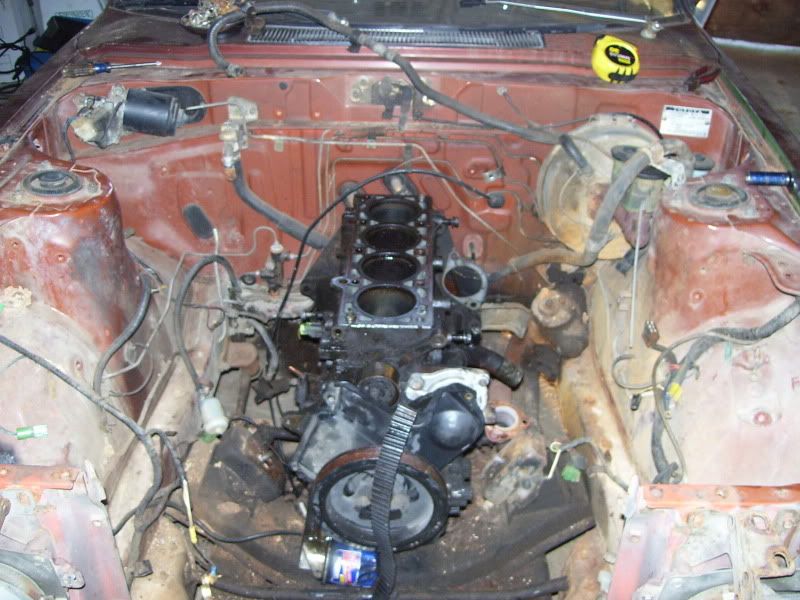

so I mocked the block up in the engine bay

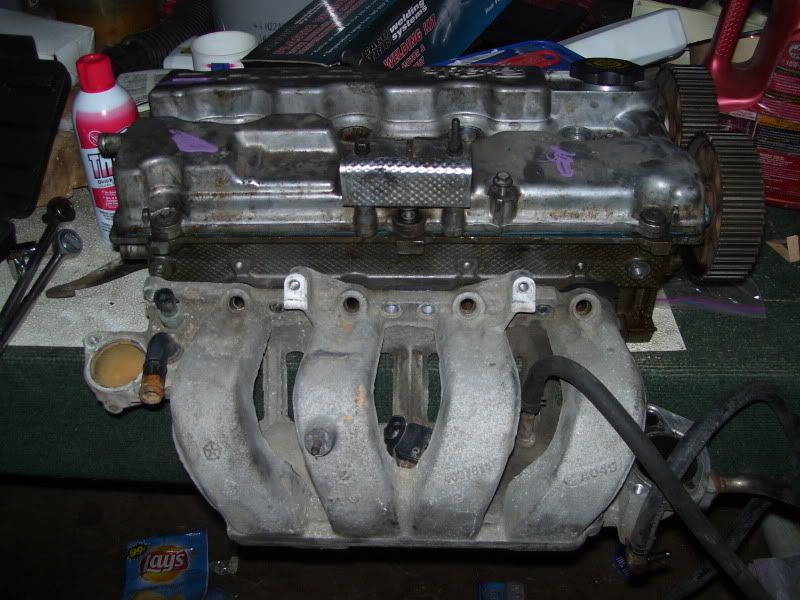

this is the 420a eclipse head($35) with a DOHC neon manifold mocked up on it...topped by the caravan valve cover, this allows the exhaust to come out on the drivers side...like stock celica and also allows both the intake manifold and the future SRT turbofold to point forward

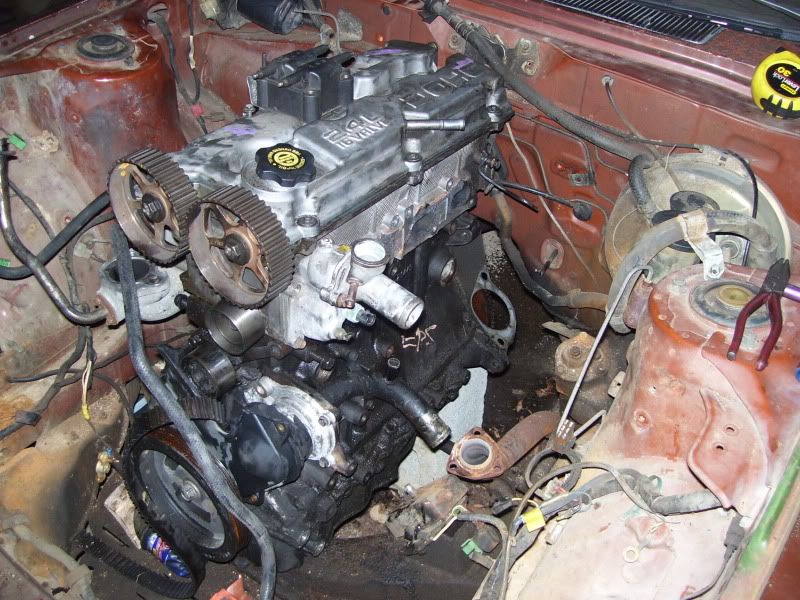

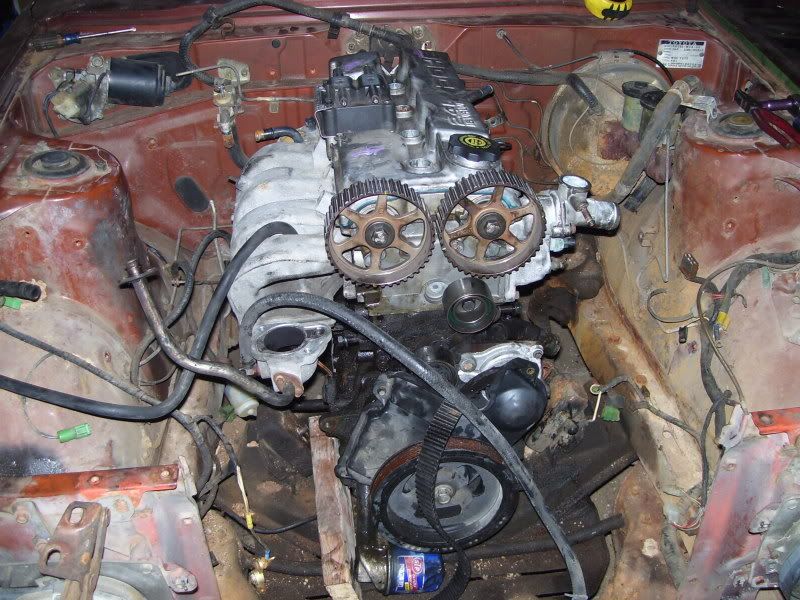

block and head mocked up in car...engine is still 3-4 inches too high and 1.5 inches too far forward...need to modify the oil pan and/or x-member, I'll decide which after I decided whether I really want to go through the headache of adding rack and pinion steering


note the 420 exhaust side water neck...comes out sideways...this just wont do...


not that you can see much with this cell phone picture...but I cut this waterneck off of the caravan manifold...it will likely need more modification before it works correctly, but it points forward...just like I wanted

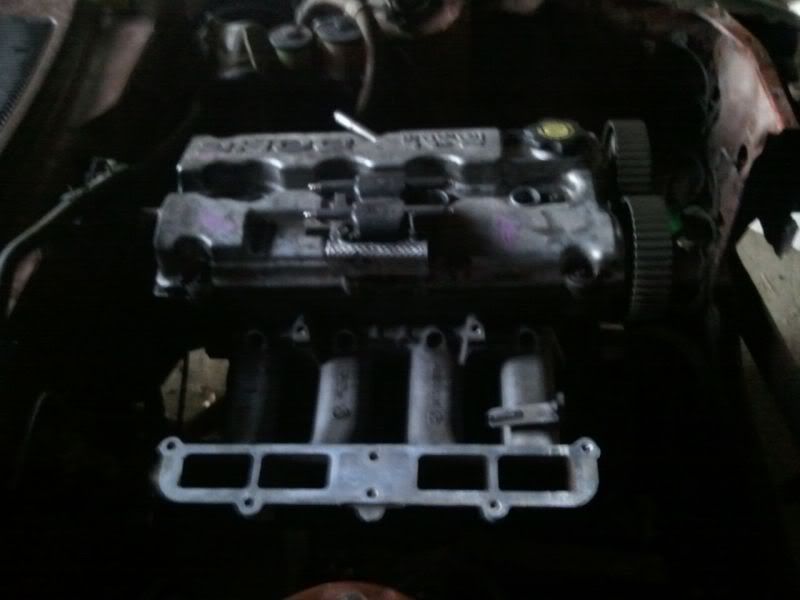

speaking of the caravan intake manifold...here is the lower half mocked up...debating on a sheetmetal intake...either using this as a base...or using my stratus 2.4L as a base...I'm leaning toward the stratus...it has long runners(good in a turbo application) also considering using a Sebring composite plastic manifold...which also has long runners in addition to a central TB and being composite will also have lower IATs..again, good for turbo...decisions, decisions

thats it so far...but I am currently looking for a Liberty bellhousing if anyone has any leads in that area(so far my cheapest one I have found is $315...ridiculous cost for a bell) I will use the dakota option if I absolutely must, but the liberty bell is preferrable
