Old 11-26-2012, 02:32 PM   #1
Intercooler pipe routing
TD New Guy

Join Date: Feb 2011
Location: Sonora, Mexico

My Ride: 1987 Dodge Daytona
Engine: Shelby Z 2.2
Induct: Turbo
1/4: 0.000

Posts: 100
Feedback: (0)
2ricardo3 is keeping the peace
Hey guys, i was a little lost these past few months. But im back and with some goodies for my daytona, she finally deserves them.

So i bought a same side IN/OUT intercooler (along some other stuff) to replace the POS OEM one. But im having real trouble in figuring out how to route the piping, since there are no aftermarket intercooler piping for our cars, or at least that i know of.

If i buy an universal intercooler piping kit, by the way the pipes look it seems that i wont be using a lot of the pipes they come with and may have to cut some of them to make them fit.

If you could help me by posting some pics and some advices on what should i do and get (im aware that i'll have to cut some holes on the defense to make the pipes go thru the engine).

I used the search engine and found out that some people use smaller radiators and move some other stuff. I have the stock A/C but im considering on removing it, in this year i have taken the car to fix the A/C 3 times, maybe thats a sing of some kind, but with 120 F daily summer days, its almost a must have.
2ricardo3 is offline
Reply With Quote Quick reply to this message Share on facebook
Sponsored Links
Advertisement

Old 11-26-2012, 05:29 PM   #2
Re: Intercooler pipe routing
- OFFICIAL GEARHEAD -


Join Date: Jun 2004
Location: Houghton MI !frosty nights!

My Ride: Ram HFE/Omni/SL/XR7
Engine: 2.5 TII, SMEC, .60/.63, 2-piece, 52mm, no B/S ;)
Induct: Turbo
1/4: 13.800

Posts: 8,197
Feedback: (98)
detobias is keeping our cars running
after removing the stock IC you should have lots of room for piping?

it's possible to use the original 'lower' IC hose (from turbo outlet to IC inlet) to get you close...
detobias is offline
Reply With Quote Quick reply to this message
Old 11-26-2012, 06:49 PM   #3
Re: Intercooler pipe routing
TD Extreme User!

Join Date: Apr 2004
Location: Mesa, AZ.

1/4: 0.000

Posts: 11,581
Feedback: (59)
tryingbe is keeping our cars running
Quote:
Originally Posted by detobias View Post
after removing the stock IC you should have lots of room for piping?
Not with the a/c condenser in the way.
tryingbe is offline
Reply With Quote Quick reply to this message
Old 11-26-2012, 07:48 PM   #4
Re: Intercooler pipe routing
TD New Guy

Join Date: Feb 2011
Location: Sonora, Mexico

My Ride: 1987 Dodge Daytona
Engine: Shelby Z 2.2
Induct: Turbo
1/4: 0.000

Posts: 100
Feedback: (0)
2ricardo3 is keeping the peace
Quote:
Originally Posted by tryingbe View Post
Not with the a/c condenser in the way.
So either i remove the complete AC system and get rid of the condenser, or move the condenser away towards the passenger side or the driver side
2ricardo3 is offline
Reply With Quote Quick reply to this message
Old 11-26-2012, 07:55 PM   #5
Re: Intercooler pipe routing
TD Extreme User!

Join Date: Apr 2004
Location: Mesa, AZ.

1/4: 0.000

Posts: 11,581
Feedback: (59)
tryingbe is keeping our cars running
I don't own a Daytona anymore, so I can't tell you what space you might or might not have. Daytona's engine bay is big, you might find a way to mount the intercooler pipes without moving the condenser.

Here are the picture I have of my Daytona, but I didn't have an a/c condenser.







tryingbe is offline
Reply With Quote Quick reply to this message
Old 11-26-2012, 07:55 PM   #6
Re: Intercooler pipe routing
Legendary Driver

GLHNSLHT2's Avatar

Join Date: Jan 2004
Location: Spokane, Wa

My Ride: 85 GLHT, 87 ShelbyZ,
Engine: 2.2 T2 and 2.5 T2
Induct: Turbo
1/4: 13.882

Posts: 10,158
Feedback: (7)
GLHNSLHT2 has really helped outGLHNSLHT2 has really helped out
Get an intercooler with opposite ins and outs and run them like this. Cummins IC in Daytona Enlarging a factory hole to 2.5"-3.0" hole beside each frame rail will allow you to run pipes into the engine bay and keep the a/c. No moving of stuff around
GLHNSLHT2 is offline
Reply With Quote Quick reply to this message
Old 11-26-2012, 08:07 PM   #7
Re: Intercooler pipe routing
TD New Guy

Join Date: Feb 2011
Location: Sonora, Mexico

My Ride: 1987 Dodge Daytona
Engine: Shelby Z 2.2
Induct: Turbo
1/4: 0.000

Posts: 100
Feedback: (0)
2ricardo3 is keeping the peace
The thins is i already have the intercooler with same side IN/OUT and dont wanna get rid of it and get a new one.

So what about the radiator issue? Did i just miss read/understood or i really have to get a smaller one.
2ricardo3 is offline
Reply With Quote Quick reply to this message
Old 11-27-2012, 12:05 AM   #8
Re: Intercooler pipe routing
Level 2 Supporter

dragbaron's Avatar

Join Date: May 2006
Location: Clovis, NM

My Ride: CSX/Omni/Shel-Dak
Engine: 5.2 & 2.2 turbo
Induct: Turbo
1/4: 0.000

Posts: 1,534
Feedback: (38)
dragbaron is keeping the peace
On the radiator issue: you can unbolt the factory intercooler from it, and the radiator will stay. The brackets that hold the radiator in the car on the driver's side, also have the intercooler mounted to them. Just unbolt the intercooler, and leave the brackets there.
dragbaron is offline
Reply With Quote Quick reply to this message
Old 11-27-2012, 02:30 AM   #9
Re: Intercooler pipe routing
TD New Guy

Join Date: Feb 2011
Location: Sonora, Mexico

My Ride: 1987 Dodge Daytona
Engine: Shelby Z 2.2
Induct: Turbo
1/4: 0.000

Posts: 100
Feedback: (0)
2ricardo3 is keeping the peace
Yeah actually i will drop the OEM intercooler. I mean, it would be kinda stupid if i dont take it off when im upgrading it. Im still a lil' bit confused on the universal piping issue

Thanks everyone.
2ricardo3 is offline
Reply With Quote Quick reply to this message
Old 11-27-2012, 12:15 PM   #10
Re: Intercooler pipe routing
Garrett Booster

Join Date: Sep 2011
Location: duncan, ok

My Ride: 89 daytona shelby
Engine: T2
Induct: Turbo
1/4: 0.000

Posts: 261
Feedback: (0)
paragraph is keeping the peace
if you remove the stock intercooler you'll have room for the pipes. order the universal pipe kit. better to have more pipe than too little. i didn't move my a/c condenser or radiator for mine. i'm still using a stock hose on the driver side, but it all works the same.
y defensa es "bumper" en ingles.

paragraph is offline
Reply With Quote Quick reply to this message
Old 11-27-2012, 06:52 PM   #11
Re: Intercooler pipe routing
TD New Guy

Join Date: Feb 2011
Location: Sonora, Mexico

My Ride: 1987 Dodge Daytona
Engine: Shelby Z 2.2
Induct: Turbo
1/4: 0.000

Posts: 100
Feedback: (0)
2ricardo3 is keeping the peace
hahahahah someone payed attention to their spanish clases on high school. Hey I was in OKC for the season opener of the Thunder on NOV 2, i really liked the state of OK.
2ricardo3 is offline
Reply With Quote Quick reply to this message
Old 11-27-2012, 06:57 PM   #12
Re: Intercooler pipe routing
Garrett Booster

Join Date: Sep 2011
Location: duncan, ok

My Ride: 89 daytona shelby
Engine: T2
Induct: Turbo
1/4: 0.000

Posts: 261
Feedback: (0)
paragraph is keeping the peace
Lol! I'm Puerto Rican bro. And I'm very happy you liked my state. Very happy that you came here of all the other states. And that game was on my birthday. They're a great team. Thunder up!
paragraph is offline
Reply With Quote Quick reply to this message
Old 11-27-2012, 09:48 PM   #13
Re: Intercooler pipe routing
TD Hardcore User!

Join Date: Oct 2007
Location: Hemet, CA

My Ride: 90 Daytona ES
Engine: 2.5 Turbo 1
Induct: Turbo
1/4: 0.000

Posts: 3,971
Feedback: (13)
acannell is keeping our cars running

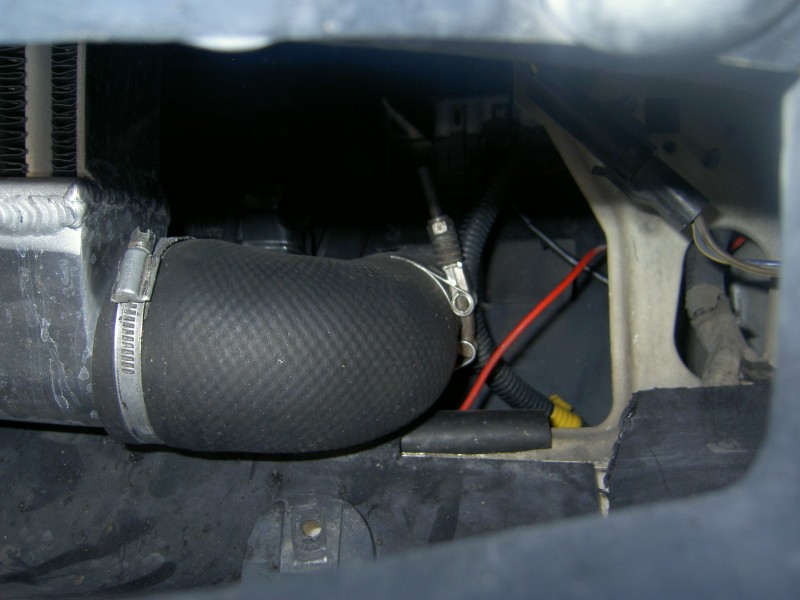

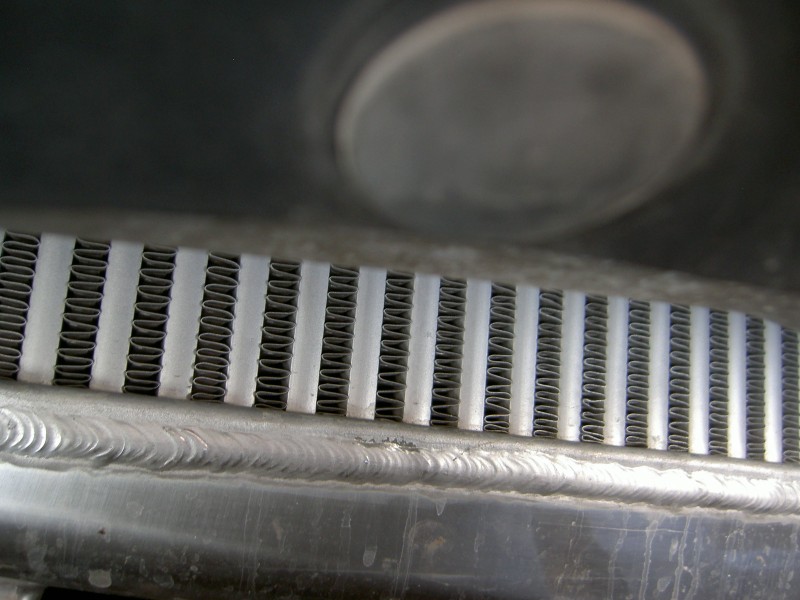

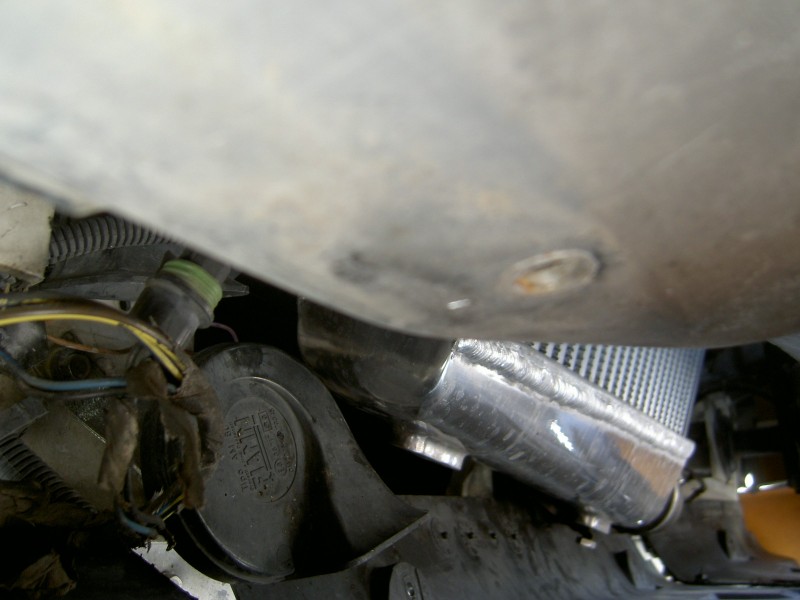

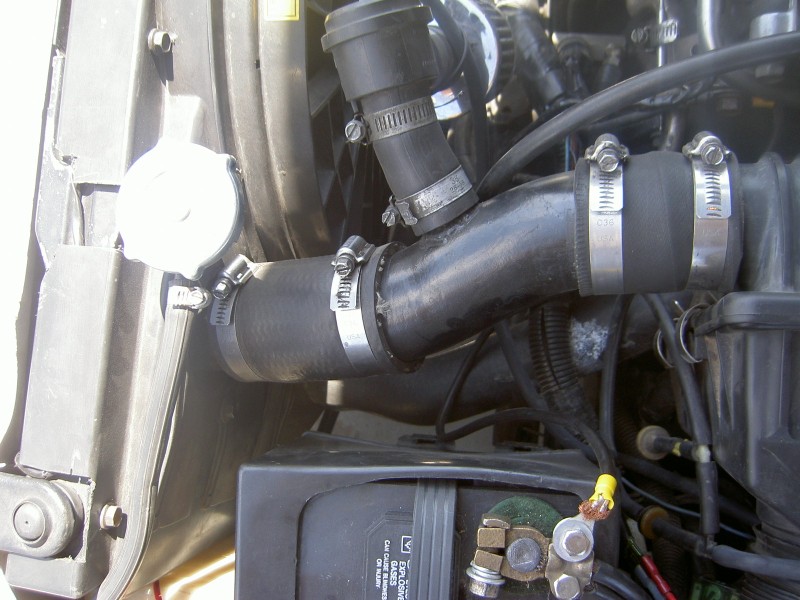

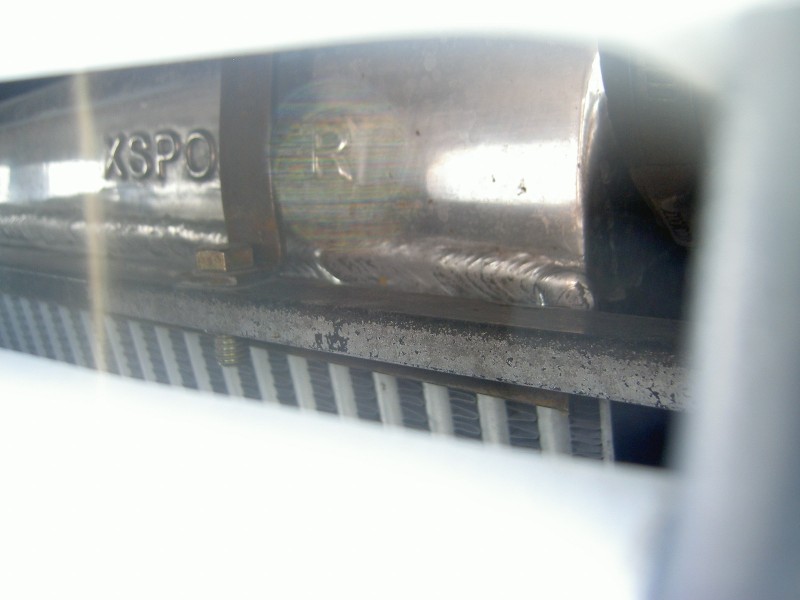

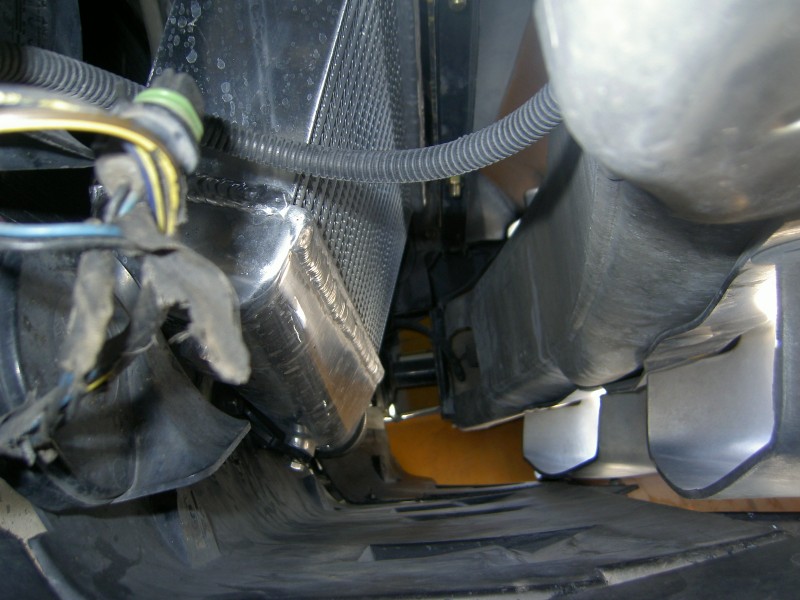

im not sure what daytona you have, but I put in a huge same side intercooler without moving the condensor or changing the radiator at all. custom brackets put it in front of everything, and you cut a big hole in front of the radiator bottle.

you have to get rid of the radiator bottle too. this fit 2.5" plumbing okay


acannell is offline
Reply With Quote Quick reply to this message
Old 11-28-2012, 01:38 AM   #14
Re: Intercooler pipe routing
TD New Guy

Join Date: Feb 2011
Location: Sonora, Mexico

My Ride: 1987 Dodge Daytona
Engine: Shelby Z 2.2
Induct: Turbo
1/4: 0.000

Posts: 100
Feedback: (0)
2ricardo3 is keeping the peace
Quote:
Originally Posted by paragraph View Post
Lol! I'm Puerto Rican bro. And I'm very happy you liked my state. Very happy that you came here of all the other states. And that game was on my birthday. They're a great team. Thunder up!
Sorry bro, i tought you were "American". I was visiting my dad who lives in Dallas and since it's very close, we decided to go to the game, i've been a thunder fan since they moved from Seattle, weird that i didn't like the supersonics and now i love the thunder, even if they were the same team sometime 4-5 years ago.

Hey acannell, where did you put the radiator bottle? I was looking at the engine bay this evening and realized that it will probably be in the way of the piping. Since im gonna go 3" all the way in and out (exhaust) i think i'll have to make the holes bigger (don't we all love to destroy stuff). I also noticed that you moved yourbattery position to a vertical position. BTW your engine bay looks so amazing, i hope mine does look like thatsome time in the future.

Pictures like those ones are the ones that really help me make up my mind.
2ricardo3 is offline
Reply With Quote Quick reply to this message
Old 11-28-2012, 03:06 PM   #15
Re: Intercooler pipe routing
Garrett Booster

Join Date: Sep 2011
Location: duncan, ok

My Ride: 89 daytona shelby
Engine: T2
Induct: Turbo
1/4: 0.000

Posts: 261
Feedback: (0)
paragraph is keeping the peace
[QUOTE=2ricardo3;2514549]Sorry bro, i tought you were "American". I was visiting my dad who lives in Dallas and since it's very close, we decided to go to the game, i've been a thunder fan since they moved from Seattle, weird that i didn't like the supersonics and now i love the thunder, even if they were the same team sometime 4-5 years ago.QUOTE]

i am american man. and they are an awesome team if not the best
paragraph is offline
Reply With Quote Quick reply to this message
