Old 01-28-2013, 08:00 PM   #16
Re: Ed Peters T2 Head
Garrett Booster

Join Date: Aug 2011
Location: Milton,ontario

My Ride: GLHS #581/589
1/4: 0.000

Posts: 266
Feedback: (1)
Shelbyrich is keeping the peace
Quote:
Originally Posted by The Pope View Post
I was slow to posting lol.

But you just posted up more pictures than show nothing really, top and front is meaningless. It could be a big valve ported head or stock from any of those photos
I pulled the cam tonight... Took pics with good cam but am having problems uploading to laptop.. Here is a pic from iphone again with cam removed. Not sure if what you are looking for can be seen here and it with this photo?
Attached Thumbnails
Ed Peters T2 Head-image.jpg
Shelbyrich is offline
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 01-28-2013, 08:46 PM   #17
Re: Ed Peters T2 Head
“Life's hard. It's even harder when you're stupid.”

DetroitTurbo's Avatar

Join Date: Aug 2010
Location: Detroit Metro

My Ride: 1985 Daytona
Engine: 2.2l
Induct: Turbo
1/4: 0.000

Posts: 1,628
Feedback: (8)
DetroitTurbo is keeping the peace
The pictures needed would be of the intake and exhaust ports (where the intake and exhaust bolt up), and the bottom of the head.
DetroitTurbo is offline
Reply With Quote Quick reply to this message
Old 01-28-2013, 11:32 PM   #18
Re: Ed Peters T2 Head
We'll do it live!

itsbudda's Avatar

Join Date: Jun 2007
Location: Cincinnati

My Ride: 91 Spirit/89 Daytona
Engine: 2.5 T2ish/2.2 T2
Induct: Turbo
1/4: 0.000

Posts: 7,615
Feedback: (2)
Images: 31
itsbudda is keeping the peace
I'm sorry I have to be the bad guy. If you thought anything in that last photo you posted was a port or chamber , I must say your apparent lack of understanding of a cylinder head is astonishing. Especially since you've already started to tear into it. I really hope you followed proper torque procedure when pulling the cam. If at this point you're wondering what the procedure is, I suggest you stop immediately and do some serious reading on the subject before continuing, because you may have already messed up the cam and could seriously get hurt if you try to pull the valves and springs without the right tools. That stuff's under ALOT of pressure.

To answer your question as far as what to look for,

The dark circles in this picture are the valves. A good closeup of the combustion chamber (the B shaped crater that the valves are inside) would help us determine if the valves are oversized or not or any any work's been done with the combustion chambers

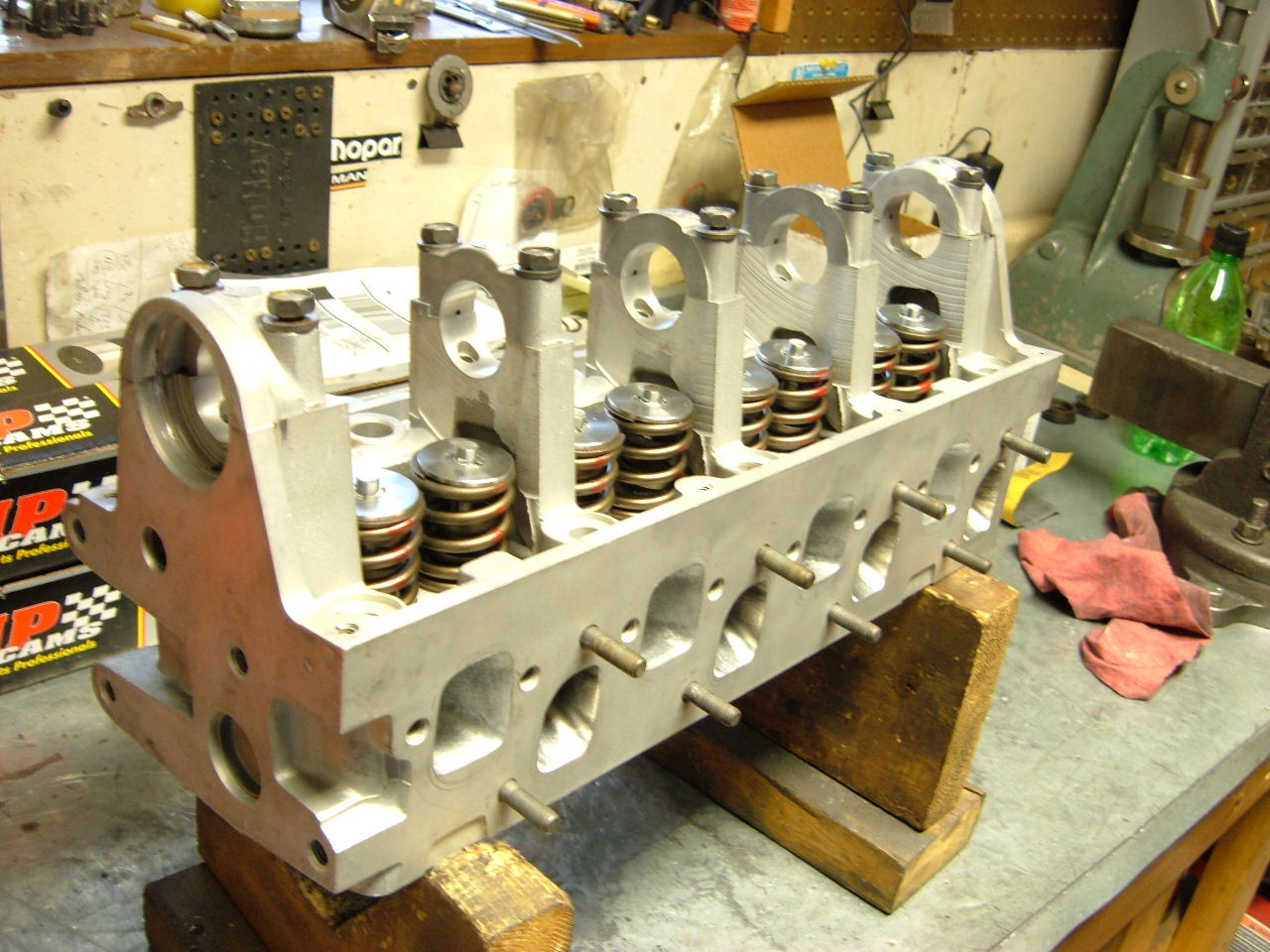

The squares in this shot are the ports. (high set's intake, lower set is exhaust.) A good closeup of an intake and exhaust port would also greatly help.
__________________
Zombie Spirit
1991 Spirit ES 2.5 T1, Garrett turbo, fmic, stage 3, +20s, 2.5in exhaust - Fender bender. Parked pending bodywork

Derptona
1989 Daytona shelby. 2.2 T2, Menegon head, 1mm os valve, Same side FMIC, 3 in exhaust, +40s, 84 checker interior

Ceelo Red
2009 Honda Civic Si (S-low)
2.0 i-vtec, 6speed. The boring daily. Totally stock, staying that way.

Last edited by itsbudda; 01-29-2013 at 02:23 AM..
itsbudda is offline
Reply With Quote Quick reply to this message
Old 01-29-2013, 07:08 AM   #19
Re: Ed Peters T2 Head
Garrett Booster

Join Date: Aug 2011
Location: Milton,ontario

My Ride: GLHS #581/589
1/4: 0.000

Posts: 266
Feedback: (1)
Shelbyrich is keeping the peace
Quote:
Originally Posted by itsbudda View Post
I'm sorry I have to be the bad guy. If you thought anything in that last photo you posted was a port or chamber , I must say your apparent lack of understanding of a cylinder head is astonishing. Especially since you've already started to tear into it. I really hope you followed proper torque procedure when pulling the cam. If at this point you're wondering what the procedure is, I suggest you stop immediately and do some serious reading on the subject before continuing, because you may have already messed up the cam and could seriously get hurt if you try to pull the valves and springs without the right tools. That stuff's under ALOT of pressure.

To answer your question as far as what to look for,

The dark circles in this picture are the valves. A good closeup of the combustion chamber (the B shaped crater that the valves are inside) would help us determine if the valves are oversized or not or any any work's been done with the combustion chambers




The squares in this shot are the ports. (high set's intake, lower set is exhaust.) A good closeup of an intake and exhaust port would also greatly help.
Thanks a lot for your feedback and I'm not embrassed to say you are not far off on my lack of head knowledge. I did however try to post a 2 pics and only one uploaded. Attached is a pic of the bottom of the cylinder head. I didn't take a pic of the exhaust and intake ports but will get an post.
My engine skills and knowledge date back to grade 12 shop (which was a few years ago - some 20+). I recall torquing cam but don't recall torque procedure for removal but it makes sense. I have taken your advice and am wisely stopping teardown. Hopefully I haven't damaged anything and still have all my fingers and toes. I would never attempt to resurface the head or make any attempt at porting and polishing. Next step is dropping it off to machine shop to evaluate.
Thanks
Attached Thumbnails
Ed Peters T2 Head-image.jpg
Shelbyrich is offline
Reply With Quote Quick reply to this message
Old 01-29-2013, 01:08 PM   #20
Re: Ed Peters T2 Head
Super Pope


The Pope's Avatar

Join Date: Mar 2003
Location: Spokane WA

Induct: Turbo
1/4: 0.000

Posts: 9,841
Feedback: (10)
Images: 5
The Pope has really helped outThe Pope has really helped out
Quote:
Originally Posted by Shelbyrich View Post
Thanks a lot for your feedback and I'm not embrassed to say you are not far off on my lack of head knowledge. I did however try to post a 2 pics and only one uploaded. Attached is a pic of the bottom of the cylinder head. I didn't take a pic of the exhaust and intake ports but will get an post.
My engine skills and knowledge date back to grade 12 shop (which was a few years ago - some 20+). I recall torquing cam but don't recall torque procedure for removal but it makes sense. I have taken your advice and am wisely stopping teardown. Hopefully I haven't damaged anything and still have all my fingers and toes. I would never attempt to resurface the head or make any attempt at porting and polishing. Next step is dropping it off to machine shop to evaluate.
Thanks
your getting some where with the photos lol. Basically what the block looks at and the manifolds.

It looks like the Ed Head I looked at already, the chambers have the right shape like mine but he doesn't use a scribe to get the curves all the same. I lock a caliper and make the curves off the casting so there all even. His are eye balled. May make no real difference in power, I am just more picky. The chamber design helps and increases flow from the head, low lift flow that was destroyed stock.

a cleaned straight on shot would be nice, I'd look for cracks other than between the valves which are normal.

Speaking of valves this is a stock valve head. +1 valves are this point are nice and use the stock seats. Then just doing a nice seat grind and blending any bad spots in the ports the tool makes would be nice. Not needed though I'm sure.

With the ports being able to see if the head has been cut at least to the guides is what to look for. If they were match ported and the roof of the ports at the guides wasn't raised it did nothing. I believe he raised the ports are the guide and then polished them. I cut near .300" at the guide to jack the flow but most are still near .200" which is still a big help.
__________________
Rob Walsh

84 DC Shelby Rampage
86 GLHS 76
89 CSX 187
92 2.5 Turbo ES Shadow Convertable
70 R/T SE Challenger, supercharged 340
05 PT GT
93 Cummins


The Pope is offline
Reply With Quote Quick reply to this message
Old 01-29-2013, 01:28 PM   #21
Re: Ed Peters T2 Head
Super Pope


The Pope's Avatar

Join Date: Mar 2003
Location: Spokane WA

Induct: Turbo
1/4: 0.000

Posts: 9,841
Feedback: (10)
Images: 5
The Pope has really helped outThe Pope has really helped out
I'd like to add, because I'll get flack by the comment lol. When your looking for every drop of power, running in a class and your not allowed other mods. Or your Shadow and your already 10.0 and looking for 9s. One of these people, you need everything measured the same for every drop. The common street car or bracket racer doesn't need to worry about it with a turbo car. The bulk flow is still there.

With porting we measure everything. When each cylinder makes exactly the same power at the same RPM then the engine as a whole makes more power and revs higher. This is why people have equal length headers, single plane tuned intakes and muilt TB intakes. This is also why ports are measured to all be the same. Most of the porting I do doesn't include a turbo and it is more important without boost. So I measure everything to make sure everything is even. Even if you make a mistake, that mistake goes to all the cylinders. Otherwise it throughs off the engine.

From the photo even you can see the chambers are un even, which I've seen before and mentioned. But the bulk of the gain here is from the design, so it'll still help a lot. So my statement that is doesn't matter at this point, most likely your build is true. People gaining 3-4 HP here and there filling in gaps trying to go faster in a racing class would be different.
__________________
Rob Walsh

84 DC Shelby Rampage
86 GLHS 76
89 CSX 187
92 2.5 Turbo ES Shadow Convertable
70 R/T SE Challenger, supercharged 340
05 PT GT
93 Cummins


The Pope is offline
Reply With Quote Quick reply to this message
Old 02-02-2013, 08:19 AM   #22
Re: Ed Peters T2 Head
Garrett Booster

Join Date: Aug 2011
Location: Milton,ontario

My Ride: GLHS #581/589
1/4: 0.000

Posts: 266
Feedback: (1)
Shelbyrich is keeping the peace
Hopefully these upload..
Attached Thumbnails
Ed Peters T2 Head-image.jpg
Shelbyrich is offline
Reply With Quote Quick reply to this message
Old 02-02-2013, 08:22 AM   #23
Re: Ed Peters T2 Head
Garrett Booster

Join Date: Aug 2011
Location: Milton,ontario

My Ride: GLHS #581/589
1/4: 0.000

Posts: 266
Feedback: (1)
Shelbyrich is keeping the peace
Quote:
Originally Posted by Shelbyrich View Post
Hopefully these upload..
One more timeEd Peters T2 Head-image.jpg
Shelbyrich is offline
Reply With Quote Quick reply to this message
Old 02-02-2013, 10:36 AM   #24
Re: Ed Peters T2 Head
Legendary Driver

GLHNSLHT2's Avatar

Join Date: Jan 2004
Location: Spokane, Wa

My Ride: 85 GLHT, 87 ShelbyZ,
Engine: 2.2 T2 and 2.5 T2
Induct: Turbo
1/4: 13.882

Posts: 10,024
Feedback: (6)
GLHNSLHT2 has really helped outGLHNSLHT2 has really helped out
doesn't look like much was done. What a bout a pic of the combustion chamber now.
GLHNSLHT2 is offline
Reply With Quote Quick reply to this message
Old 02-02-2013, 12:03 PM   #25
Re: Ed Peters T2 Head
Level 1 Supporter

jim34's Avatar

Join Date: Dec 2004
Location: goodrich MI

My Ride: 85 laser
Engine: 2.5 hybrid
Induct: Turbo
1/4: 11.585

Posts: 2,349
Feedback: (15)
jim34 is keeping the peace
hopefully the unshrouded valves at least make up for the port floor they screwed up, i would look for another head and start over that does does not appear to be fixable unless you welded it up and that would be costly for sure, i had a head similar to that but they butchered the floor even worse than that, way too many sharp edges im seeing to be a professional job....
jim34 is offline
Reply With Quote Quick reply to this message
Old 02-02-2013, 02:53 PM   #26
Re: Ed Peters T2 Head
Garrett Booster

Join Date: Aug 2011
Location: Milton,ontario

My Ride: GLHS #581/589
1/4: 0.000

Posts: 266
Feedback: (1)
Shelbyrich is keeping the peace
Quote:
Originally Posted by jim34 View Post
hopefully the unshrouded valves at least make up for the port floor they screwed up, i would look for another head and start over that does does not appear to be fixable unless you welded it up and that would be costly for sure, i had a head similar to that but they butchered the floor even worse than that, way too many sharp edges im seeing to be a professional job....
Dropped it off at the machine/engine shop today. They are going to check it out to see if it is worth putting $ into it.. If not ill scrap it and look for new one.

Cheers
Shelbyrich is offline
Reply With Quote Quick reply to this message
Old 02-04-2013, 07:45 PM   #27
Re: Ed Peters T2 Head
Garrett Booster

Join Date: Aug 2011
Location: Milton,ontario

My Ride: GLHS #581/589
1/4: 0.000

Posts: 266
Feedback: (1)
Shelbyrich is keeping the peace
Quote:
Originally Posted by Shelbyrich View Post
Dropped it off at the machine/engine shop today. They are going to check it out to see if it is worth putting $ into it.. If not ill scrap it and look for new one.

Cheers
Well got word back from machine shop today...looks like it's not worth putting $ into to make 100% unless I was to do myself(which isn't gonna happen). So I'm now gonna search for a new head.
Any ideas on what to do with this one? Any parts (or head) of value or use to anyone?
Shelbyrich is offline
Reply With Quote Quick reply to this message
Old 02-05-2013, 05:42 PM   #28
Re: Ed Peters T2 Head
Garrett Booster

Join Date: Aug 2011
Location: Milton,ontario

My Ride: GLHS #581/589
1/4: 0.000

Posts: 266
Feedback: (1)
Shelbyrich is keeping the peace
Ok I got some good insight re-head now for part two, the turbo.
Again have been advised that I have an Ed Peters Turbo. Anyone know what I should be looking for with this? Sorry once again for pic quality, iPhone is only way I can take and post pics right now.
Attached Thumbnails
Ed Peters T2 Head-image.jpg
Shelbyrich is offline
Reply With Quote Quick reply to this message
Old 02-05-2013, 05:44 PM   #29
Re: Ed Peters T2 Head
Garrett Booster

Join Date: Aug 2011
Location: Milton,ontario

My Ride: GLHS #581/589
1/4: 0.000

Posts: 266
Feedback: (1)
Shelbyrich is keeping the peace
Quote:
Originally Posted by Shelbyrich View Post
Ok I got some good insight re-head now for part two, the turbo.
Again have been advised that I have an Ed Peters Turbo. Anyone know what I should be looking for with this? Sorry once again for pic quality, iPhone is only way I can take and post pics right now.
Another shot
Attached Thumbnails
Ed Peters T2 Head-image.jpg
Shelbyrich is offline
Reply With Quote Quick reply to this message
Old 02-05-2013, 05:47 PM   #30
Re: Ed Peters T2 Head
Garrett Booster

Join Date: Aug 2011
Location: Milton,ontario

My Ride: GLHS #581/589
1/4: 0.000

Posts: 266
Feedback: (1)
Shelbyrich is keeping the peace
Quote:
Originally Posted by Shelbyrich View Post
Another shot
One more
Attached Thumbnails
Ed Peters T2 Head-image.jpg
Shelbyrich is offline
Reply With Quote Quick reply to this message
